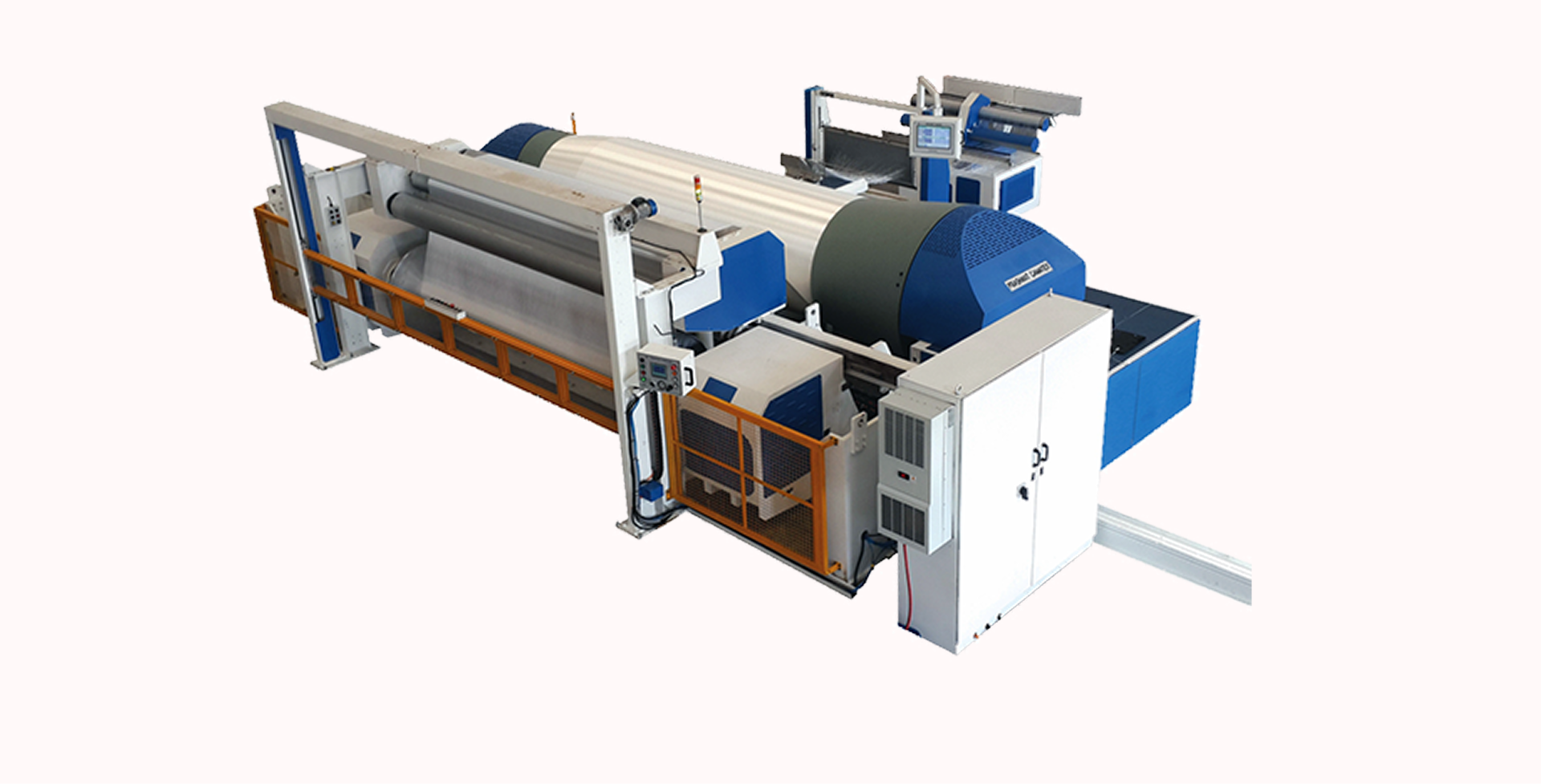

Sectional Warping - Techtronics
The Pioneer announces Asia's First Sectional Warper for Technical Textile
Salient Features
- Extremely robust machine design
- Innovative drum construction to withstand high crushing force
- Direct drive on both sides of drum to achieve optimum transmission efficiency and to generate higher beaming tension
- Flexibility to operate machine under lower tension also.
- Specially designed beam support arbors for the stability of structure.
- Double brake disc for higher beaming tension.
- Extremely sturdy feed unit for higher section tension from "Extra tension unit"
- In between creel & warping machine
- Remote Diagnosis - online support from our Service head Office
Technical Specifications:
| Working Width | : | 2200 - 4200 mm |
| Cone Angle | : | 7° - 8.5° |
| Max. Beam Flange Diameter | : | 1250 mm |
| Drum Circumference | : | 3140 mm |
| Warping Speed | : | 500 m/min |
| Beaming Speed | : | 60 m/min |
| Beaming Tension | : | Up to 60,000 N |
| Drive | : | AC Servo Drive / Asynchronous Servo Motor |
| PLC Based control | : | |
| Braking system | : | Air cooled - Hydraulic disc braking system |
| Applicable yarns | : | Spun and Filament Yarn from all types of technical fibres say Polyester Mono filament / Multi filament / Nylon / Carbon Fibre / Glass fibre / Kevlar etc. |
