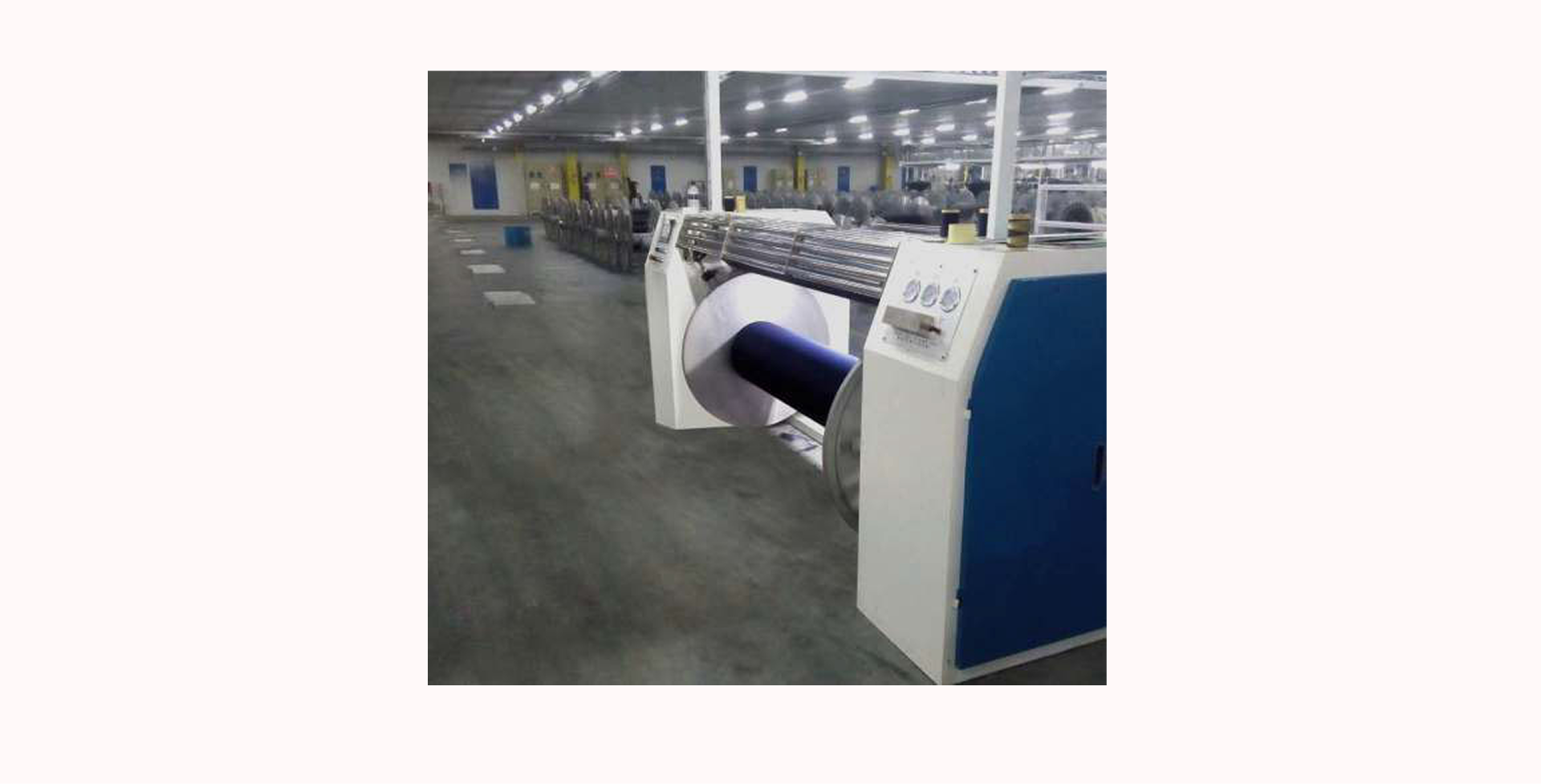

Beam to Beam Cone Winder
Beam to Beam Cone Winder
Salient Features
- Ideal solution of preparing Cheese or Cone from Indigo Dyed Warp beam
- Suitable for Knit or Shirting Denim Fabrics
- Leasing zone with stop motion.
- Rigid and heavy duty structure
- Monitoring of beam unwinding and package winding
- AC Servo motors ensuring uniform & regulated winding speed through out the process.
- Servo System helps for precise synchronization
- Waxing device is a standard feature ensuring even distribution of wax
- 7" Touch Screen for monitoring the process and functionality of the machine with fault diagnosis.
Technical Specifications
| Suitable yarn Count | : | Ne 6s to Ne 40s (14 to 98 Tex) |
| Working width of Warp beam | : | 1600mm Or 1800mm |
| Beam flange diameter of warp beam | : | 800 mm /1000 mm |
| Machine speed | : | 5~150 meters per min (adjustable) |
| Number of winding heads | : | 400-600 (According to customer requirement) |
| Tension | : | 30~50 cN/end |
| Package Size | : | Ø 220mm X 85mm |
